Handheld welding system

  • Description
  • Features
  • Specification
  • Appearance

Handheld welding system can increase processing rate,

Like no other time before, laser processing reduces expenditure of welding materials and joint different materials with high power laser.

There’s no need to spend much time to training, and it’s easy to operate.It's an indispensable system which greatly enhances the quality and processing rate in recent industry.




Laser metal welding application is quite extensive, we can choose laser and welding head according to different materials, thickness and application requirements.

  • Copper and aluminum materials reflection is relatively higher than 1064nm wavelength laser, so we choose high-power laser; Stainless materials reflection is lower so we choose low-power laser.
  • Thickness is depended on laser power, the higher power, the higher efficiency.
  • Use pulsed mode in certain application

Matching through the above application requirements. We attach importance to laser safety,we select handheld welding with maximum 150Kw laser power to ensure user safety.

左右滑動看表格
Size(mm) L:1200
W:600
H:1243(Including wheels)
Scanner djustable offset 0~4mm
Voltage Three phase 220V Assist/Gas shield coaxial
Power comsumption 6kW Collimated focal length 50mm
Laser power 1kW Focal length 80mm/120mm
Emssion wavelength 1070nm Weight of Handheld welding head 1.36kg
Output fiber termination QBH-compatible connector Cooling temperature Celsius 21~25
Guide laser Red guide laser power Cooling flow More than 10 l/min
Output fiber 5m Cooling method Water cool


Description

Handheld welding system can increase processing rate,

Like no other time before, laser processing reduces expenditure of welding materials and joint different materials with high power laser.

There’s no need to spend much time to training, and it’s easy to operate.It's an indispensable system which greatly enhances the quality and processing rate in recent industry.



Features

Laser metal welding application is quite extensive, we can choose laser and welding head according to different materials, thickness and application requirements.

  • Copper and aluminum materials reflection is relatively higher than 1064nm wavelength laser, so we choose high-power laser; Stainless materials reflection is lower so we choose low-power laser.
  • Thickness is depended on laser power, the higher power, the higher efficiency.
  • Use pulsed mode in certain application

Matching through the above application requirements. We attach importance to laser safety,we select handheld welding with maximum 150Kw laser power to ensure user safety.

Specification
左右滑動看表格
Size(mm) L:1200
W:600
H:1243(Including wheels)
Scanner djustable offset 0~4mm
Voltage Three phase 220V Assist/Gas shield coaxial
Power comsumption 6kW Collimated focal length 50mm
Laser power 1kW Focal length 80mm/120mm
Emssion wavelength 1070nm Weight of Handheld welding head 1.36kg
Output fiber termination QBH-compatible connector Cooling temperature Celsius 21~25
Guide laser Red guide laser power Cooling flow More than 10 l/min
Output fiber 5m Cooling method Water cool

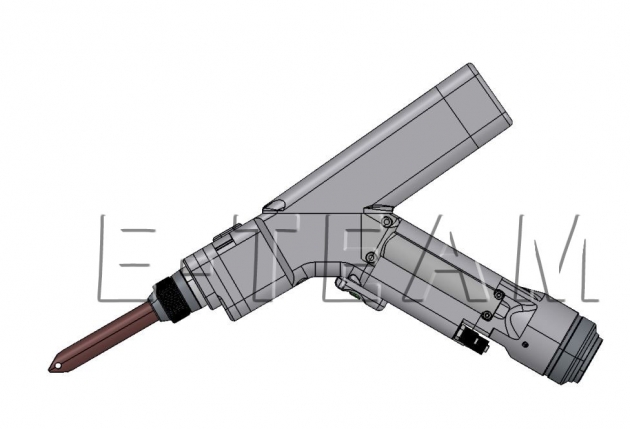

Appearance
