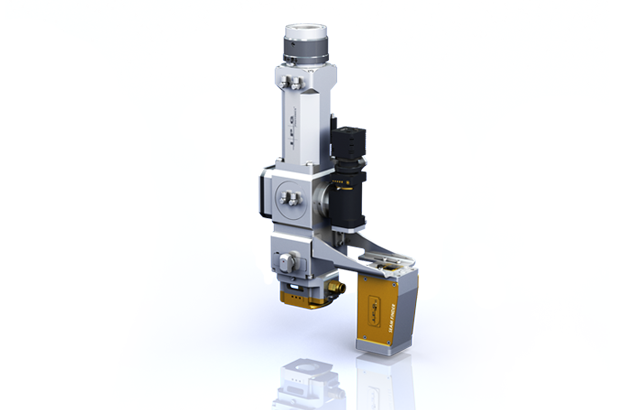

Seam Finder

Production information



The Seam Finder is provided with IPG software and user interface in flexible configurations meeting specific user requirements.The user interface monitors the seam position allowing user to adjust welding head accordingly.The accuracy of adjustment is within 10 μm and the material (welding) speed is up to 20 meters per minute.






  • Attaches easily to IPG welding heads
  • IPG Sotware and User Interface
  • Ideal for welding fast moving parts
  • Flexible configurations

左右滑動看表格
Camera Lens F35 & 15 mm extender
Height Above Material 90 mm
Material Velocity up to 20 m/minute
Seam Gap Range 200 to 3,000 μm
Field of View 11.2 mm x 8.5 mm
Seam Tracking Range +/- 2 mm
Seam Location Measure better than 10 μm
Ring Illumination green 20 x 5 W LED
