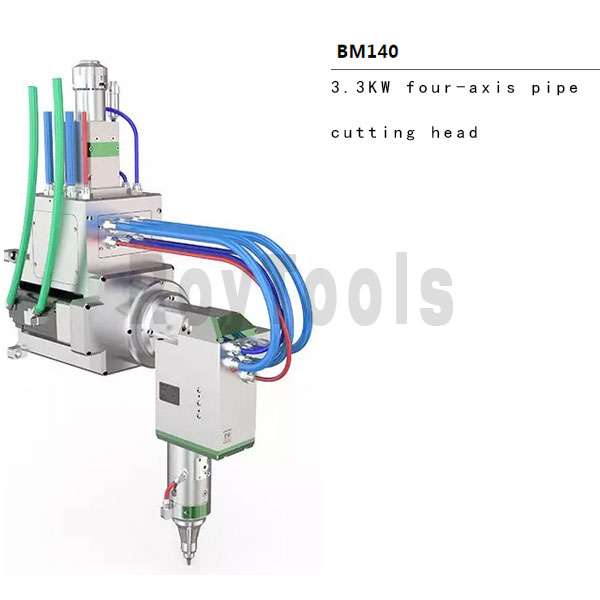

BM140

Production information


  • Feature-rich
    • Tube cutting function, groove processing function in one.
  • Optimized optical configuration
    • Optimized optical configuration and smooth and efficient airflow design with automatic focusing to make tube cutting more efficient.
  • Excellent structural design
    • Fully sealed with built-in hollow rotating mechanism, lighter weight and smaller volume reduce the mechanical requirements of the machine tool and ensure the stability of high-speed cutting.
  • Procurement costs are extremely competitive
    • It can replace most of the functions of the five-axis tube cutting machine while greatly reducing equipment procurement costs (which can reduce equipment procurement costs by 80%).



  • Power level ≤3.3KW
  • Optical fiber interface QBH, QD
  • Collimating lens focal length 100mm
  • Focusing lens focus 125mm, 150mm, 20 0mm
  • Clear aperture 36.1 mm
  • Auto focus
    • Focus range +9 ~ -9mm
    • Action range ±45°
  • Swing
    • Swing rotation speed 90r/min
    • Swing angular acceleration ≤50rad/s2
    • Swing axis positioning accuracy 0.015°
    • Repeated positioning accuracy of the swing axis 0.005°
    • Auxiliary gas pressure ≤25bar
    • Weight >18kg
