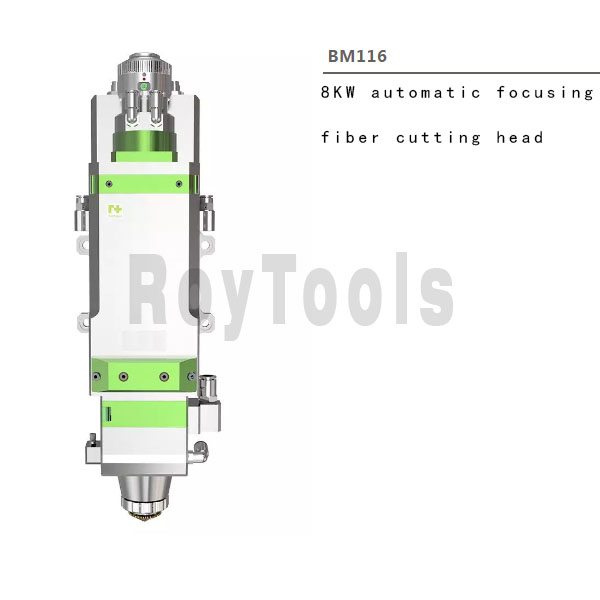

BM116

Production information


  • Variable spot module
    • Built-in ZOOM module, the collimation module automatically adjusts the focus, obtains the spot diameter of 1.2~2.0 times, and automatically compensates the focus position.
  • High withstand power
    • with D50 optical lens set, withstand power up to 8KW Thick plate cutting is handy.
  • Chase optical aperture
    • light aperture of 35mm, effectively reduce stray light interference, to ensure cutting quality and service life.
  • Highly dust-proof
    • 3 protective lenses for efficient protection of collimation and focusing mirrors.
  • Efficient cooling
    • both the collimating mirror and the focusing mirror have a built-in cooling structure, while increasing the nozzle cooling airflow to effectively protect the nozzle assembly and extend the continuous working time.




  • Power level：≤8KW
  • Optical fiber interface：QBH, QD
  • Collimating lens focal length：100mm
  • Focusing lens focal length：150mm, 20 0mm
  • Clear aperture：35 mm
  • Auto focus
    • Spot magnification：1.2~2.0X
    • Range：+8~ -12 (1.2X)+15 ~ -20 (2.0X)
    • Acceleration：≤10m/s 2
    • Speed：≤10m/min
    • Accuracy：≤ 50μm
    • Collimation protection mirror specifications：φ38mm*1.5mm
    • Focus protection mirror specifications：φ37mm*7mm ; φ50mm*2mm
    • Auxiliary gas pressure：air knife ≤ 25bar
    • Weight：>6.5kg
