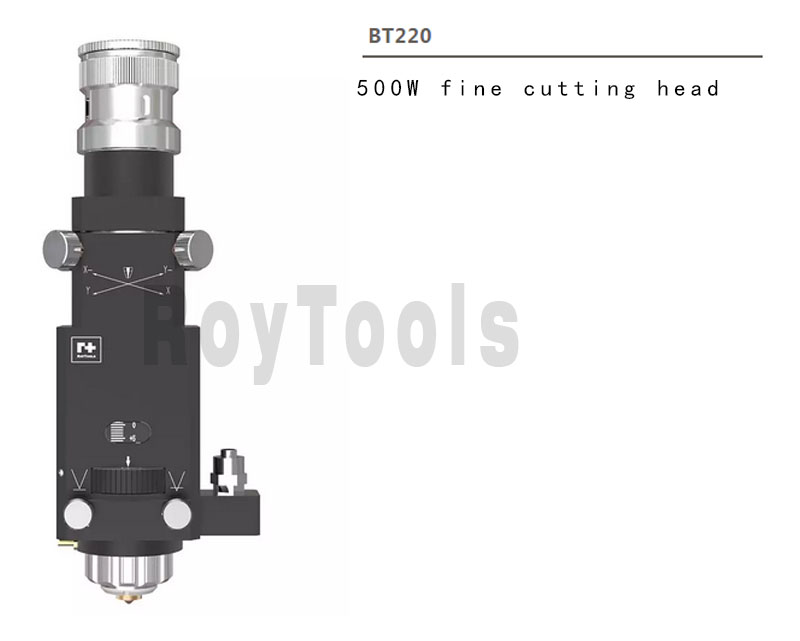

BT220

Production information


  • Focus on a lens group consisting of three precision lenses
  • Knob focus adjustment for fine adjustment of focus
  • Minimum scale 0.05mm, adjustable range 10mm
  • The use of a drawer type mirror holder makes the protection lens replacement fast and simple
  • Optional with induction nozzle connection and height sensor
  • Fit small aperture nozzle with a minimum nozzle aperture of 0.3mm
  • A variety of fiber optic interfaces for adapting to a variety of lasers



  •  Power level：≤500W
  • Clear aperture：25mm
  • Protective mirror specifications：φ22.4mm*4.1mm; φ27.9mm*4.1mm
  • Auxiliary gas pressure：≤20bar
  • Weight：~1.5kg
  • Collimating mirror
    • Clear aperture：25mm
    • Height sensor：EtherCA or ±10V optional
    • Travel range (accurate to 1mm)：0.3-10mm
    • Calibration：automatic calibration /manual calibration
    • Reaction time：<1ms
    • Temperature stability：temperature stability in the range of 0 to 45 degrees, within ± 5%
    • Power requirements：24V
    • Output (linear signal or optimization curve)： 0~10V analog / +-10V analog
  • EtherCAT chooses EDS-88C0(ECAT brand), refer to ECAT manual
