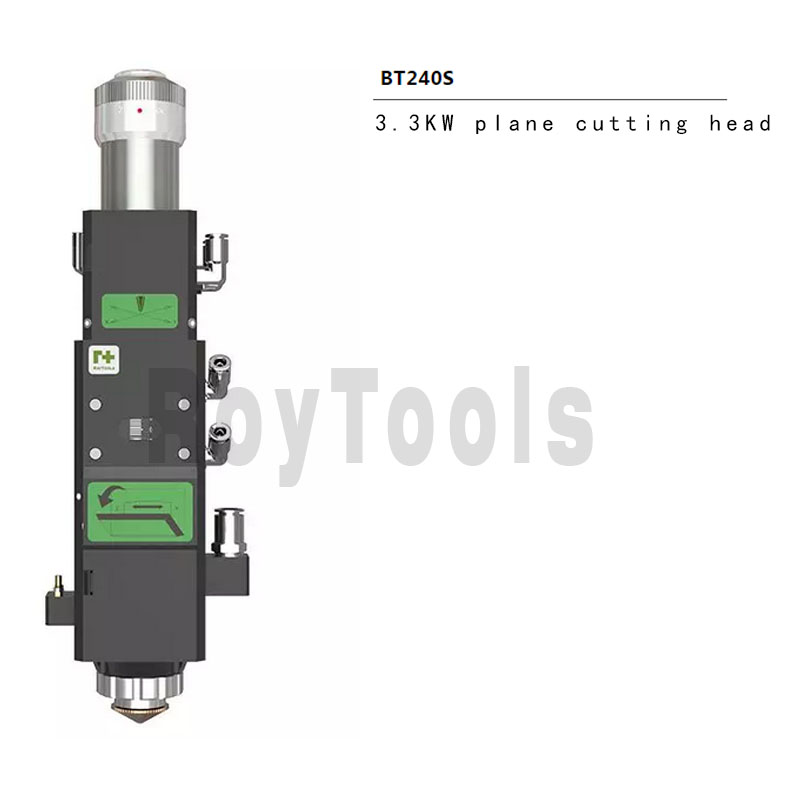

BT240S

Production information


  • Highly dustproof
    • Dust-proof grade IP65, fully enclosed wrap light path, the possibility of lens contamination is almost zero.
  • Moving picture zero focus
    • The scale can be flexibly adjusted to unify the zero focus position and no longer worry about adjusting the process parameters.
  • Efficient water cooling
    • Focusing mirrors, collimating mirrors, and nozzles all have built-in cooling functions to solve the problem of cutting heat.
  • Optimized structural design
    • Integrated body design, improved QBH fiber optic interface is no longer stuck due to water leakage and rust.



  •  Power level：≤3.3KW
  • Focusing aperture：28mm
  • Collimation lens focal length：100mm
  • Focusing lens focal length：①125mm; ②150mm; ③200mm
  • Nozzle hole specifications：① single layer; ② double layer; ③ non-standard
  • Optical fiber interface：①QBH; ②LLK-B; ③QD; ④QCS
  • Nozzle aperture：0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 2.5mm; 3.0mm; 3.5mm; 4.0mm; 4.5mm; 5.0mm
  • Protective mirror specifications：φ24.9mm*1.5mm (top); φ27.9mm*4.1mm (bottom)
  • Auxiliary gas pressure：≤25bar
  • Weight ~3.5kg
  • Height sensor：EtherCAT or ±10V optional
  • Travel range (accurate to 1mm)：0.3-10mm
  • Calibration：automatic calibration / manual calibration
  • Reaction time：<1ms
  • Temperature stability： Temperature stability in the range of 0 to 45 degrees, within ± 5%
  • Power requirements：24V
  • Output (linear signal or optimization curve)：0~10V analog/+-10V analog
