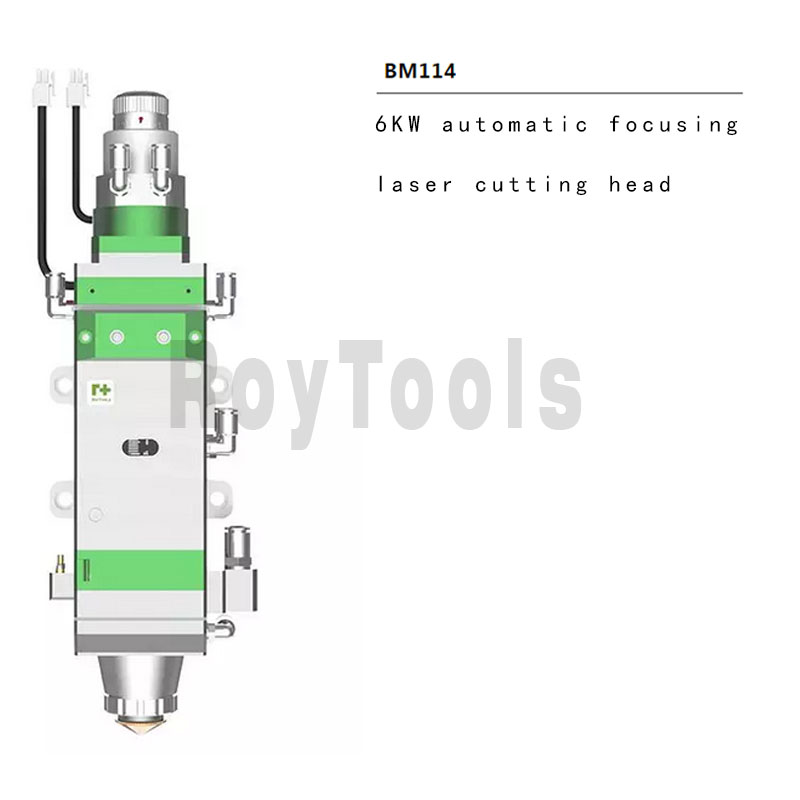

BM114S

Production information


  • High withstand power
    • With the D37 optical lens set, it can withstand up to 6KW, and the thick plate cutting is more convenient.
  • Efficient cooling
    • The collimating mirror and the focusing mirror group have a cooling structure, and at the same time increase the nozzle cooling airflow, effectively protecting the nozzle and the ceramic body, and prolonging the working time.
  • Light and efficient
    • It weighs only about 5.6KG and is compact in structure, reducing machine tool requirements.
  • Datong Optical Aperture
    • Through the aperture of 35mm, it effectively reduces stray light interference, ensuring cutting quality and service life.
  • Auto focus
    • Automatic focusing, reducing human intervention, focusing speed 10m/min, repeatability 50μm.High speed cuttingThe pre-punching time of 25mm carbon steel plate is <3s @3000W, which greatly improves the cutting efficiency.



  •  Power level：≤6KW
  • Collimation lens focal length：①100mm
  • Focusing lens focal length：①150mm; ②200mm
  • Nozzle hole specifications：① single layer; ② double layer; ③ non-standard
  • Optical fiber interface：①QBH; ②QD
  • Nozzle aperture：0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 2.5mm; 3.0mm; 3.5mm; 4.0mm; 4.5mm; 5.0mm
  • Clear aperture 35mm
  • Collimation protection mirror specifications： φ38mm*1.5mmFocus protection mirror specifications φ37mm*7mm
  • Auxiliary gas pressure：≤ 30bar
  • Weight：~5.6kg
