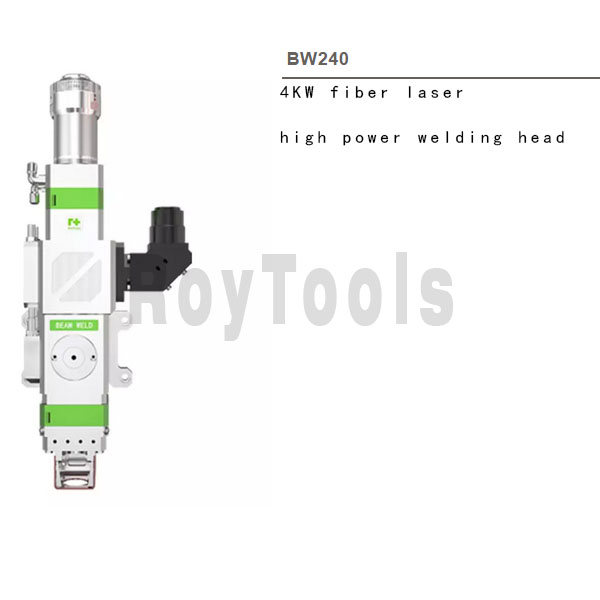

BW240

Production information


  • Cost-effective
    • Compatible with the wavelength range of mainstream fiber lasers on the market, and cost-effective products in the 4KW power range.
  • Efficient cooling
    • Both the collimating mirror and the focusing mirror mount have excellent water cooling, which can work stably for a long time and prolong the service life.
  • Highly dustproof
    • The double protection lens design effectively prevents the damage of the lens caused by falling ash and increases the service life of the welding head.
  • The expansion module is rich
    • Modules such as expandable weld tracking or locating functions make it easy to automate welding.
  • Excellent welding results
    • With the optimized optical design, the deep-melt welding is completed, the weld width-to-width ratio is large, and the medium-thick plate welding is more advantageous.
  • High quality airflow design
    • Coaxial, side-shaft protection nozzles and air knives are designed with a smooth and efficient fluid structure for the best weld pool protection and slag blow-off.



左右滑動看表格
Power level fiber laser ≤ 4KW
Clear aperture 35mm
Focus adjustment range 20mm
Collimation protection mirror specifications Φ30mm × 1.5mm
Focus protection mirror specifications Φ38mm × 2mm
Auxiliary gas pressure recommended air knife 6bar, welding protective gas 25L / min
Weight 4kg (with CCD lens module)
Weld seam tracking system realize robot automatic tracking weld
