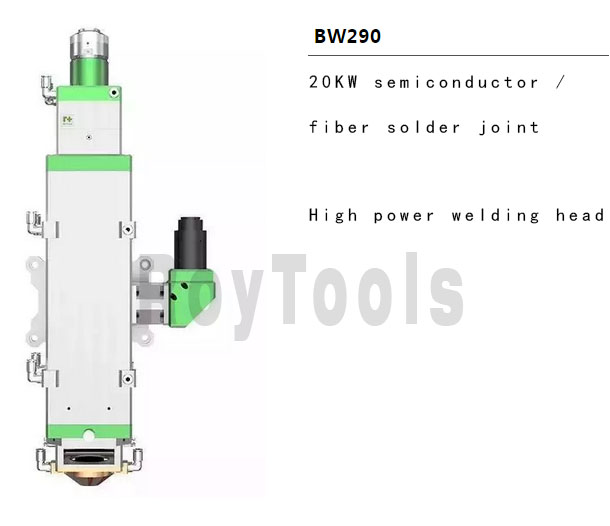

BW290

Production information




  • High withstand power
    • Optimized optical design for optimum optical quality up to 20 kW
  • High compatibility
    • Compatible with the wavelength range of mainstream semiconductor lasers and fiber lasers on the market
  • Efficient water-cooling
    • Built-in water-cooled in multiple places around the body, capable of stable operation at high power for a long time
  • Highly dust-proof
    • Equipped with a collimating upper protective mirror to prevent dust from falling directly onto the collimating mirror, causing lens damage and increasing the life of the welding head
  • High-speed welding
    • Significantly increases the welding speed and even increases the welding speed by shrinking the spot under a semiconductor laser
  • High-quality airflow design
    • With a smooth and efficient gas structure design, the best molten pool protection effect and slag blowing effect can be obtained



左右滑動看表格
Power level ≤ 20KW
Optical fiber interface 1 QBH; 2 QD
Collimator lens focal length 150mm, 200mm, 250mm, 300mm
Focusing lens focus 150mm, 200mm, 300mm, 400mm
Clear aperture 86mm
Collimation protection mirror specifications φ50mm*2mm
Focus protection mirror specifications φ80mm*4mm
CCD connection module TYPE-C, TYPE-CS
Auxiliary gas pressure air knife ≤ 6bar, welding protective gas 10-25L / min
Weight (with CCD lens module) ~12kg
