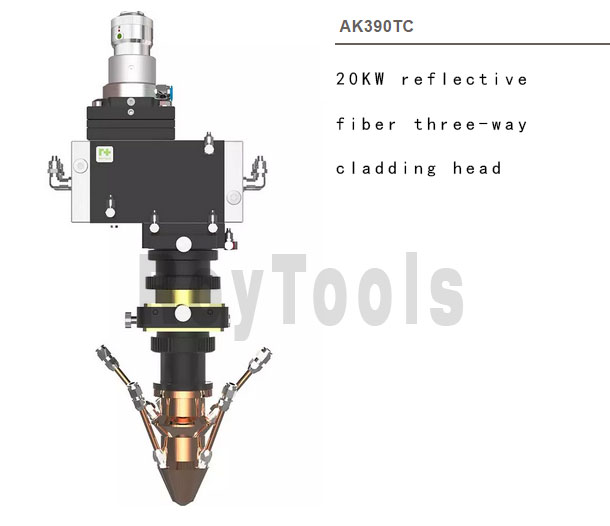

AK390 TC

Production information


  • High withstand power
    • With a direct water-cooled copper mirror, the lens has a long service life and a maximum power of 20 kW.
  • Three-way cladding
    • Through the optimized design, the powder feeding nozzle can realize high powder utilization and increase the working process of the working range.
  • Rich powder feeding form
    • The configuration of different end components enables high-power laser three-way powder feeding, ring powder feeding and other functions.
  • Efficient cooling
    • The double water-cooled structure design protects the mirror base and the laser head body with a water-cooled interface to extend the continuous working time.








  • Clear aperture：34.5mm
  • Optical fiber interface：①QBH, ②LLK-D, ③QD
  • Clear aperture：49.5mm
  • Protective lens：Φ50mm*2mm
  • Auxiliary gas pressure：2~3barWeight ~7.5kg
