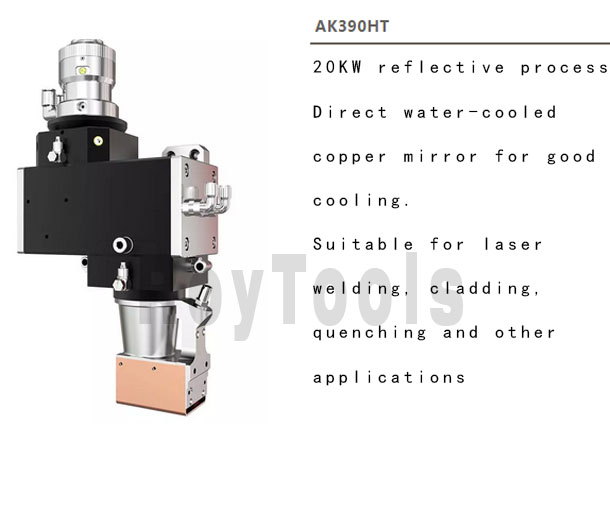

AK390 HT

Production information


  • High withstand power
    • With a direct water-cooled copper mirror, the lens has a long service life and a maximum power of 20 kW.
  • Three-way cladding
    • Through the optimized design, the powder feeding nozzle can realize high powder utilization and increase the working process of the working range.
  • Rich powder feeding form
    • The configuration of different end components enables high-power laser three-way powder feeding, ring powder feeding and other functions.
  • Efficient cooling
    • The double water-cooled structure design protects the mirror base and the laser head body with a water-cooled interface to extend the continuous working time.



左右滑動看表格
Power level ≤20KW
Pass aperture 49.5mm
Protection lens Φ50mm*2mm
Auxiliary gas pressure 2~3bar
Weight ~7.5kg
Collimation lens focal length 100mm, 150mm
Focusing lens focal length 300mm
